The 90R mass fusion splicer kit from Fujikura consists of the fusion splicer itself, which is used to splice multiple lengths of fibre optic cable, as well as a carrying case/tray and a separable work tray with space for the cleaver, stripper and battery packs.
The splicer has a wide heating area for up to 12 fibres. The wide electrode gap melts the fibres uniformly and has real-time arc discharge control by analysing the arc's brightness intensity.
The 90R does not have active core alignment mechanisms, however during discharge, fibre surface tensions effects minimise pre-existing offsets.

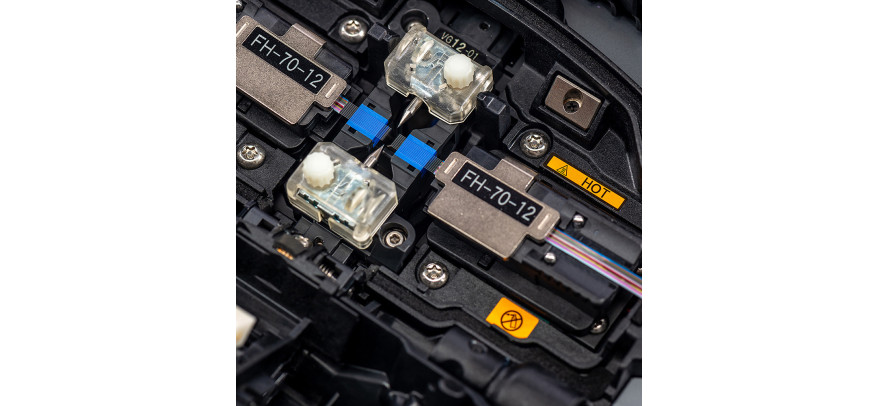

This splicer features a replaceable V Groove and includes a spare set of 16 fibre v-grooves with electrodes installed and ready to splice. They are replaceable in the field, minimising downtime.
- A universal fibre holder
- Pitch conversion fibre holder
- Ribbonising tool
- Universal ribbon stripper
- Universal tube heater
- Automated wind protector and heater clamps
- Simple sleeve centering
- Automatic blade rotation
- Blade life management
- Stripping condition control
