The 90S+ is a single fibre core alignment fusion splicer, setting a new standard in the market for fusion splicing and has been specifically developed to help users work faster with greater precision.
With market first, fully automated features, it’s active blade management technology (ABMT) improves the efficiency of the CT50 cleaver, resulting in increased productivity and reduced costs. Thanks to Active Fusion Control Technology (AFCT), the 90S+ analyses the condition of the cleave end face to perform optimal fusion control and minimise splice loss.
The 90S+ delivers a reduction in overall splice process time when compared to the previous 70S+ model, due to the combination of improvements in the reaction time of the automated wind protectors and automated heater, new fibre retention clamps and improved universal sheath clamps. The redesigned internal structure which matches the protection sleeve to the fusion splice point, successful splicing is accomplished without the need for the user to touch the 90S+ once the process has started.
- Active Fusion Control Technology (AFCT) – combining real-time fusion control with the cleave end-face analysis to determine the correct arc power to complete the splice.
- Market leading high precision and accurate core alignment technology with advanced image processing technology
- Improved automatic wind protector design which reduces overall splice time but can also be used in manual style
- High capacity lithium-ion battery (up to 300 splices)
- Patented easy splice protector positioning system

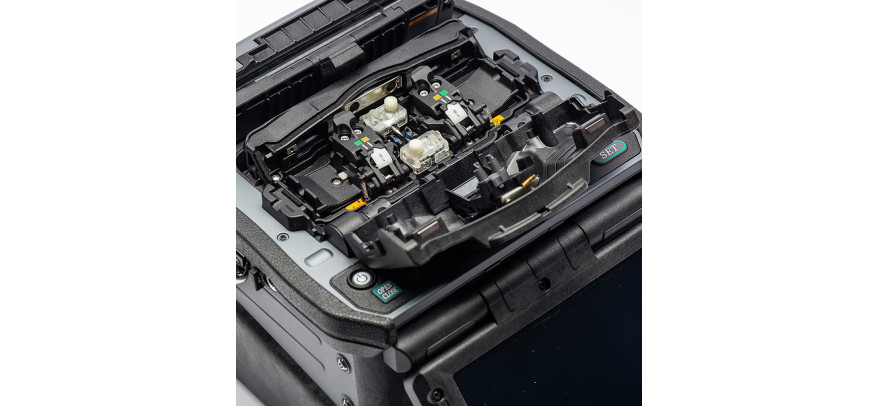

- Universal sheath clamps for standard 250 um fibre but also 900 um loose tube fibre types.
- Fibre Retention clamps
- Enabled with Fujikura’s unique “Active Blade Management Technology” with new capability to link up to 2 Fujikura CT50 cleavers simultaneously.
- A completely redesigned multi-function carry case and workstation
- Tool-less replaceable electrodes

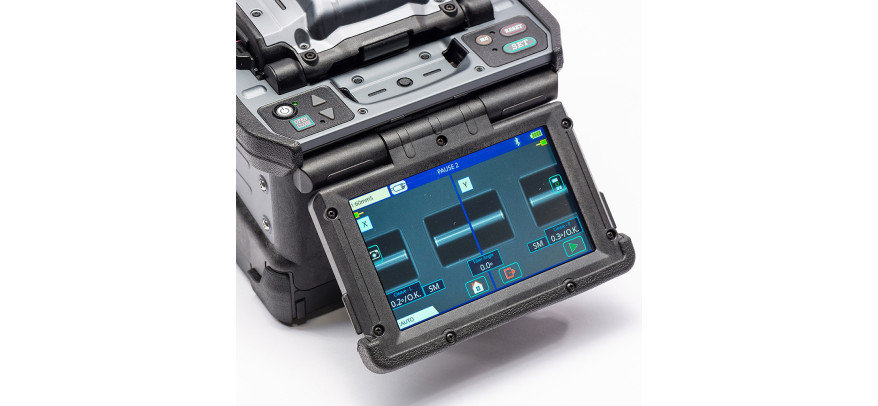

- Touch screen
