Data & Server Cabinets – various sizes | Dunasfern

Standard Data Server Cabinets

Trident Data Server Cabinets offer a server cabinet solution at minimal cost

Trident Data Standard Data Server Cabinets

A range of Blank Panels, Cable Management Bars, Telescopic Shelves for the standard IP20 Wall Boxes.

For further details and ordering information contact the Dunasfern team on 01908 282200 or email enquiries@dunasfern.com

The Trident Data Server Cabinet offers a server cabinet solution at minimal cost.

Manufactured from steel in RAL 9004 Black, the cabinets can accomodate all of today's data cabinet and server room requirements allowing for a static load of up to 800kg.

The cabinet comes complete with a Fan Tray with either 2 or 4 fans, fixed shelf, cable management as well as heavy duty castors and adjustable fixed feet.

  • Tempered front glass door with handle and lever latch lock, rear steel door with round lock
  • Two side panels removable without lock. Spare screws & Cage Nuts

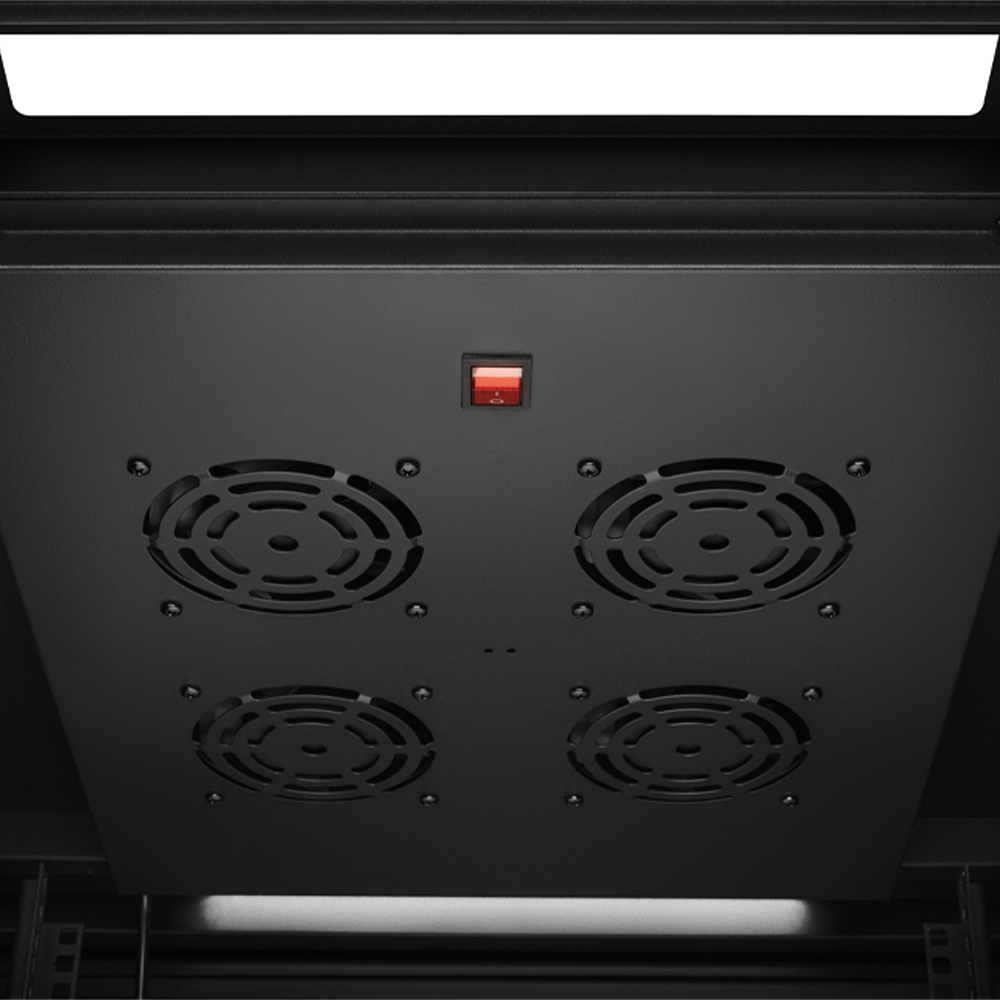

  • Fan Tray with either 2 or 4 fans (600mm or 800mm depth)

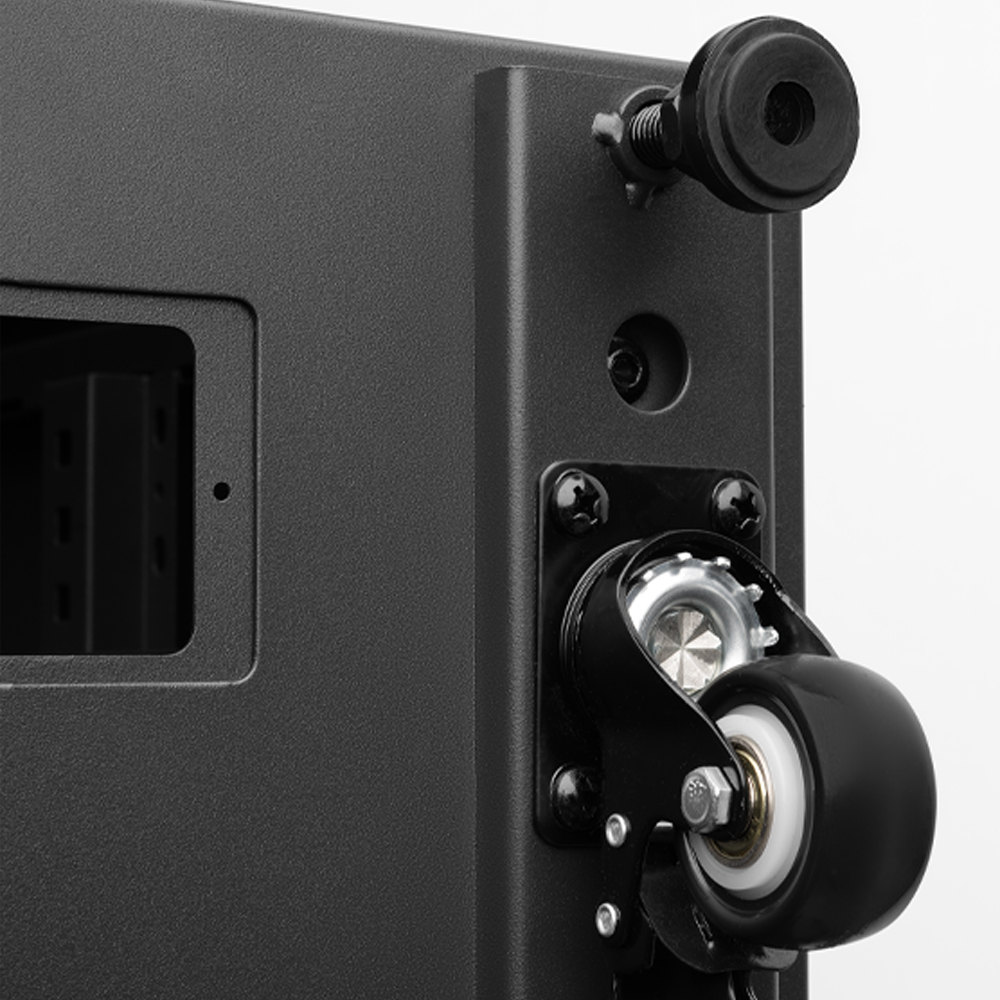

  • 4 x Heavy Duty Castors plus 4 adjustable feet
  • One fixed shelf
  • Top and bottom cable entry with open base option
  • 600mm depth has a fan tray with 2 fans, 800mm depth has a fan tray with 4 fans
  • 800mm width has 1 pair vertical cable management

Server Cabinets

Size W x DM 12U 15U 18U 27U 42U 45U 47U
600mm x 600mm x x x x x
600mm x 800mm       x x x x
800mm x 600mm       x x x x

Server Cabinet Accesories

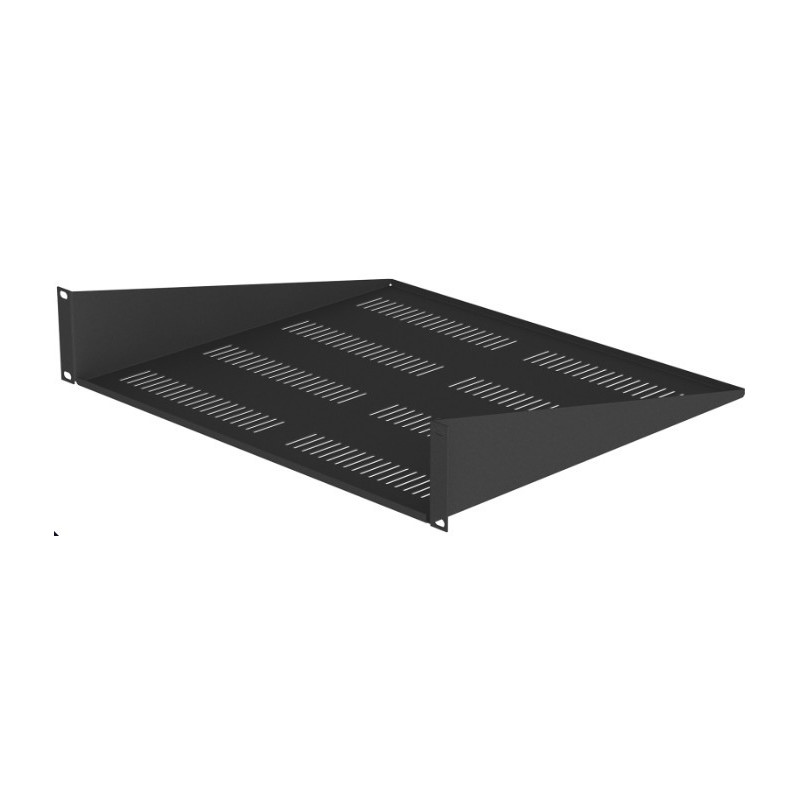

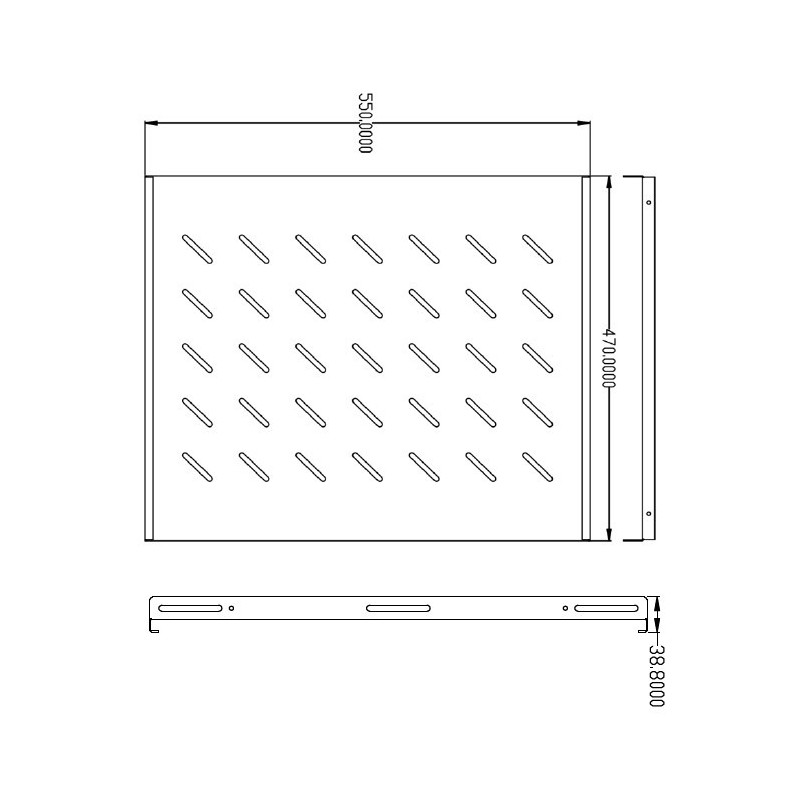

Fixed Shelf 600mm x 600mm/600mm x 800mm/ 800mm x 800mm

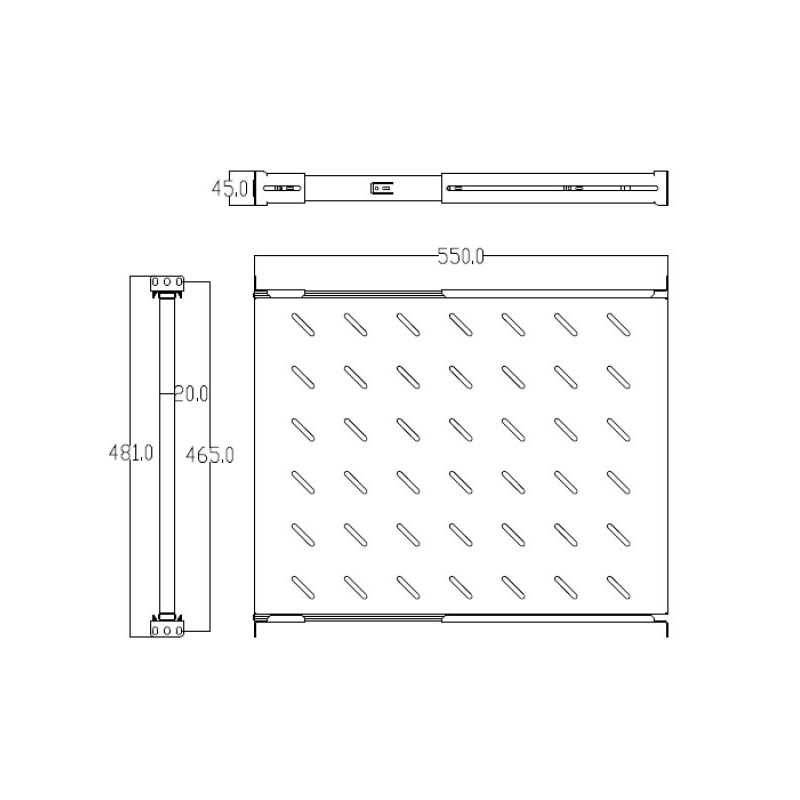

Telescopic shelf 600mm x 600mm/600mm x 800mm/ 800mm x 800mm
Heavy Duty Castors Set of 4
Adjustable Feet Set of 4
Cabinet Side

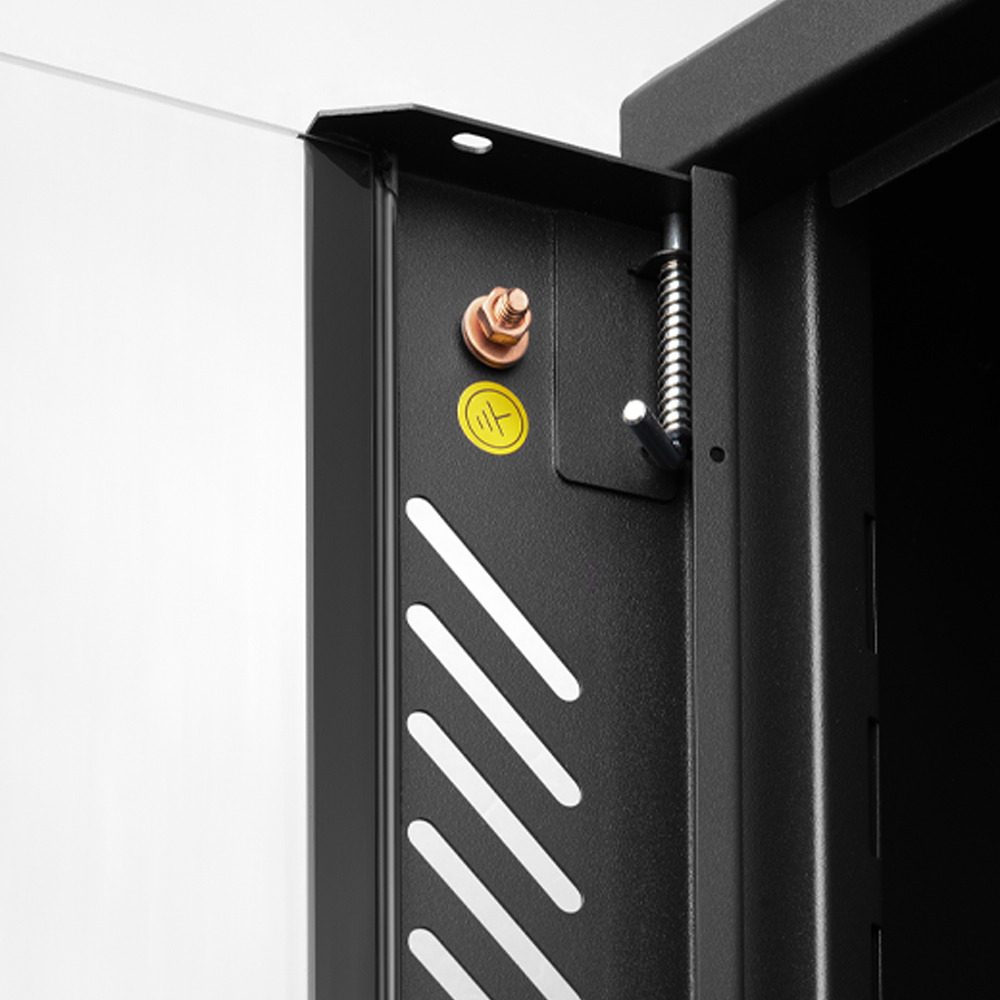

Cabinet Side Cabinet Side Open Cabinet Inside Cabinet Side Panels Cabinet Fan Panels Cabinet Bottom Cabinet Port Cover Cabinet Wheels Cabinet Button
