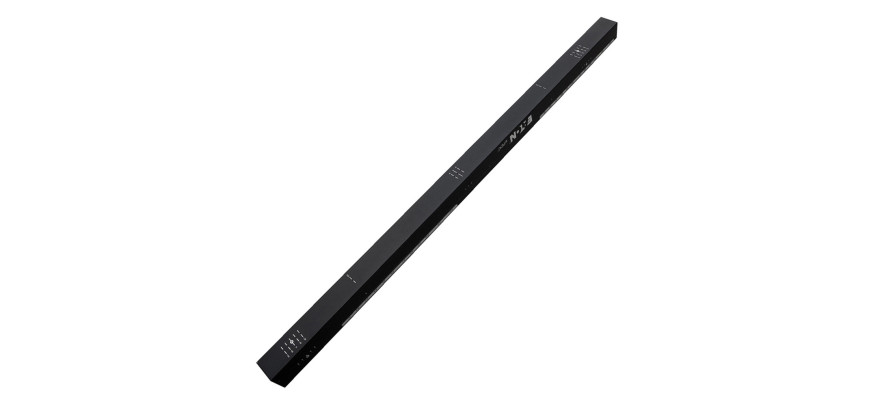

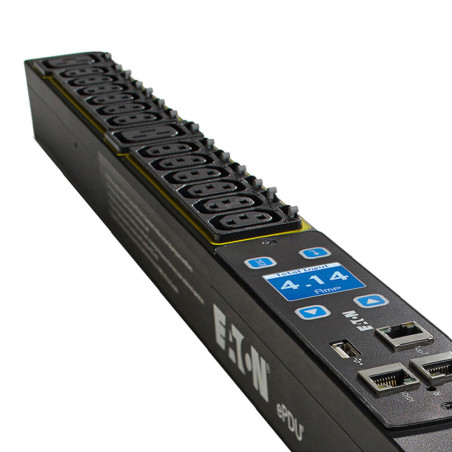

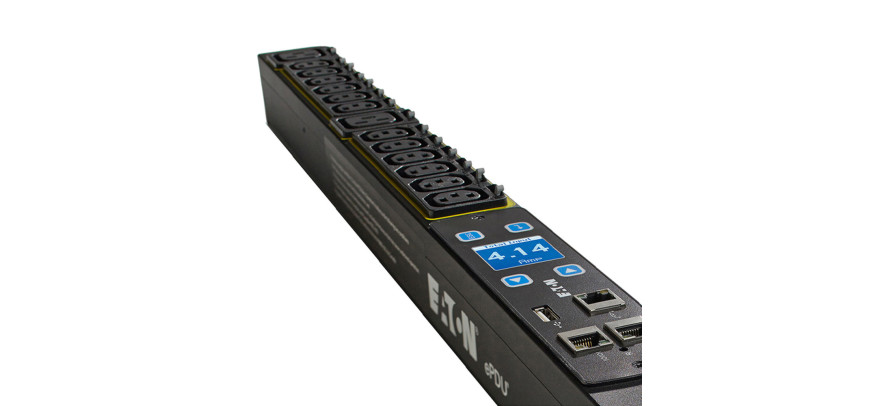

The Eaton EMIB06 16Way 24U Vertical Rackmount Metered Input PDU allows metering to the branch and phase level for effective load balancing, with no switching. The EMIB03 includes IEC Class 1 (1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain eight (8) ePDUs to share the same network connection and IP address.
Eaton metered input rack PDUs give you remote monitoring capabilities and provide access to your power data whenever you want it, wherever you are. You also can monitor your critical equipment within each colour-coded outlet section from a single interface and achieve 1% billing-grade accuracy. With all of the features of the basic PDU, 0U, 1U and 2U metered input rack-mount PDUs provide you with the ability to reduce infrastructure costs by daisy-chaining up to eight metered PDUs to share the same network connection and single IP address. The metered input PDU also simplifies load balancing and helps prevent overloads.
Phase: Single-phase
Nominal power: 3.84kW
Nominal current: 32A
Input: IEC 6039
Output: (12) C13, (4) C19
-
Phase Metering, Circuit Breaker Current Metering and Input Metering.
-
Hot-swap control module with advanced LCD.
-
Optional temperature/humidity sensor (sold separately).
-
Built-in IEC outlet eGrip retention, retains all standard IEC plugs.
-
Built-in outlet P-lock system, locking mechanism with P-lock power cords.
-
Daisy-Chain up to eight (8) PDUs, reduce network infrastructure costs.
-
Power chain monitoring & real-time intelligence on your data centre via Eaton Intelligent Power Manager.
-
High 60°C Operating temperature.
-
Colour-coded outlet and branch circuits for simple load balancing.
-
Hydraulic–Magnetic Circuit Breakers with accidental trip protection.
