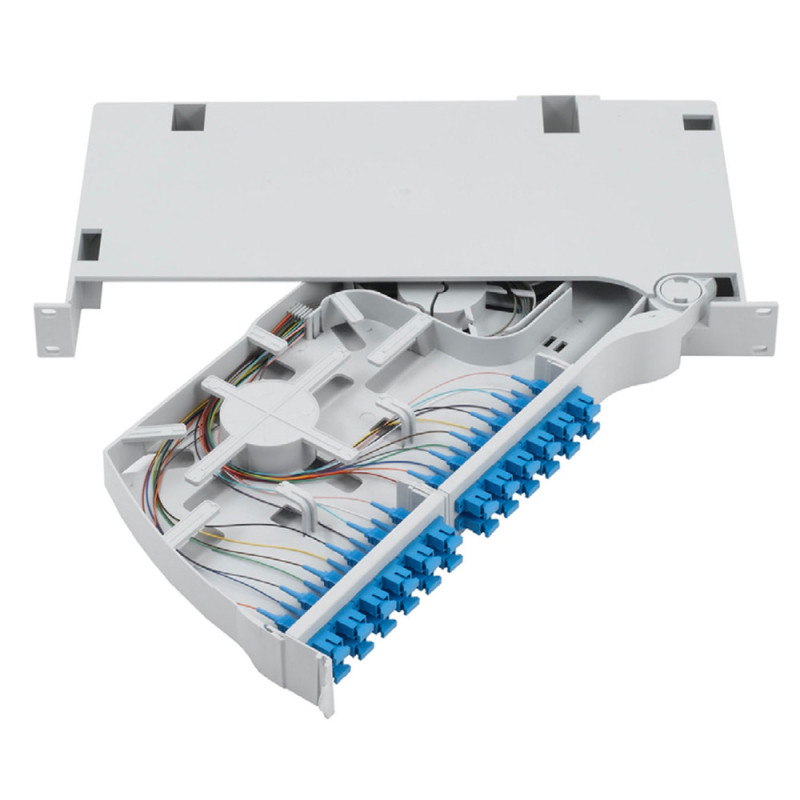

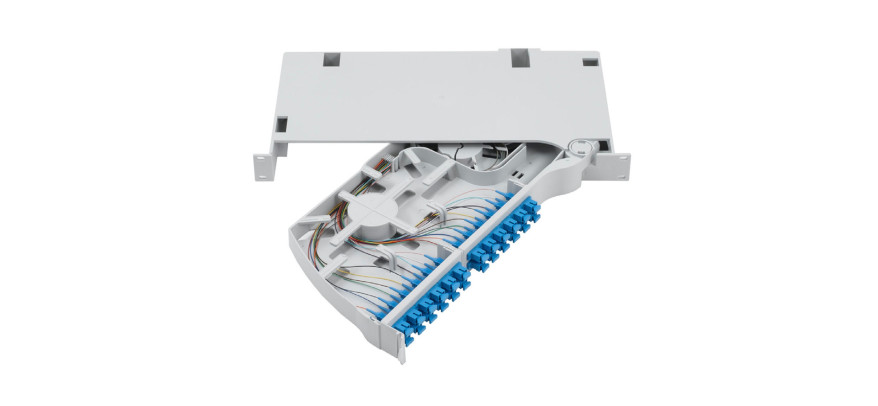

Prysmian PSP splice and patch shelf configured with 48 fibre LC SM pigtails and adaptors. The light weight product is easy to install and in built fibre management ensures all installations are the same every time which eliminates installation errors.Cables enter at the rear of the shelf on the left hand side and pigtails exit the unit from the front face.
Features and Benefits
- High density low cost compact design for up to 48 fibres.
- Cables anchor on the rear of the unit using a cable anchor plate supplied.
- Unit manufactured from high strength fire retardant plastic to give a light weight solution.
- Supplied either as an empty unit, in kit format (with pigtails and adapters in a bag) for installer loading, or with the pigtails and adapters pre-installed by Prysmian.
- All fibres are positively managed to a 30mm minimum bend radius.
- Shelf pivots out to for access to the splice tray and pigtail area.
- Shelf can be used as a patch only solution and allows excess cable lengths to be stored.
- Stackable splice bay allows for easy upgrade of splicing capacity.
- The shelf offers the ability to terminate up to 2 cables and allows through splicing of fibres.
- Compatible with Sirocco blown fibre cables using a Blown Fibre Manifold. The manifold enables up to 6 blown fibre tubes to be routed to a single shelf.
