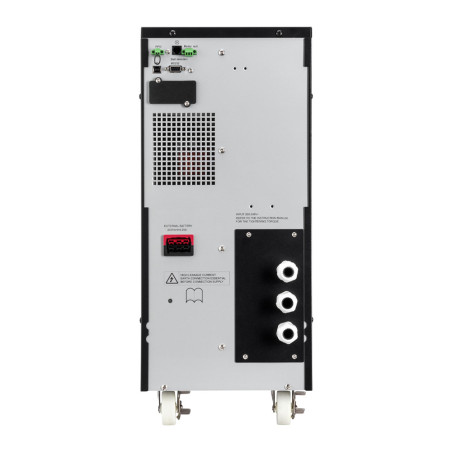

The 9SX UPS by Eaton ensures high availability, flexibility, and sophisticated protection for infrastructure, industrial, medical, information technology, networking, storage, and telecommunications. It delivers double-conversion protection convenient tower format. With a power factor of 0.9, the 9SX offers 28% more power than other UPSs in its class. It delivers more power to servers than other UPSs with the same amount of power and a lower power factor.
A maintenance bypass is available (as an option) allowing quick replacement of the UPS without powering down important systems. Stronger, longer-lasting batteries: Eaton ABM battery management technology uses a three-stage charging method that doubles battery life. 9SX additionally includes battery replacement dates.
Wattage: 4500W
Output Power Capacity: 4500 Watts/5000VA
Input Communications: Terminal block (up to 10 mm²)
Output Communications: Terminal block
- 21 minute run time at 50%/14 minute run time at 70%
- Double conversion topology
- Monitors and controls voltage and frequency
- With a 0.9 power factor, it protects more devices
- Internal bypass allows service continuity in case of UPS fault
- Next-generation graphical LCD display
- Meter energy consumption (at the UPS level)
- Hot-swappable batteries
- Advanced Battery Management (ABM) technology extends battery life
- Compact tower format

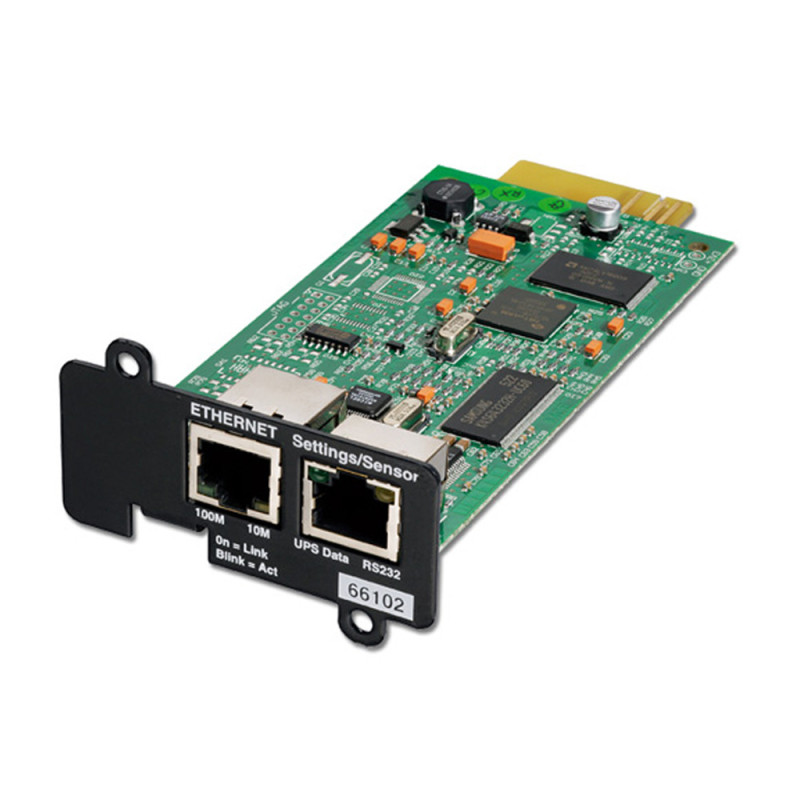

- 1 optional communication card slot (network management card, relay card or network and industrial card)
- 1 USB port and 1 serial port
- Up to 4 external hot-swappable battery modules can be added to extend runtime
- Remote ON/OFF, Remote power OFF and Relay output
