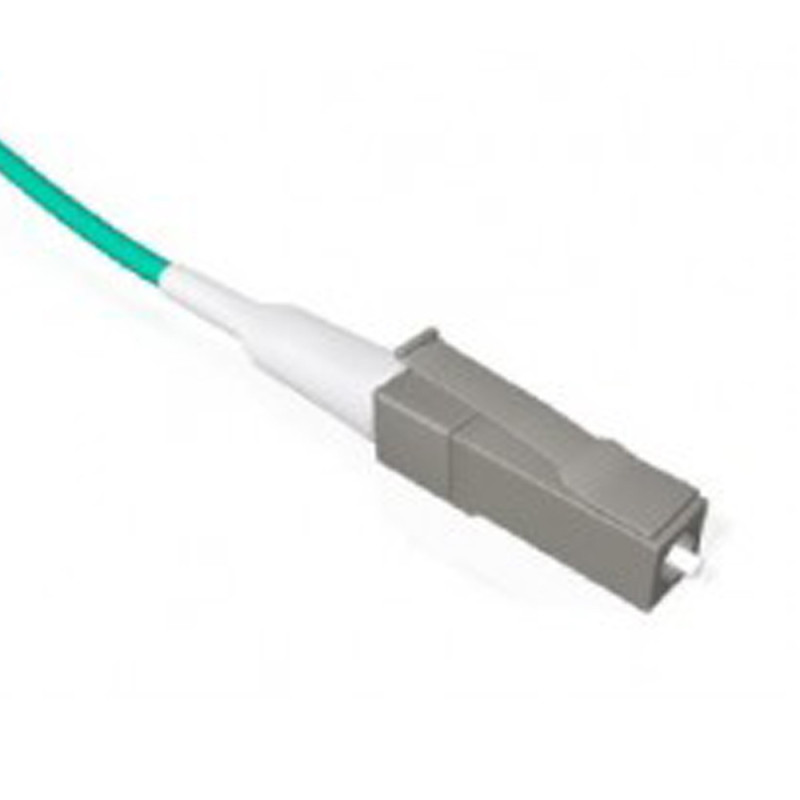

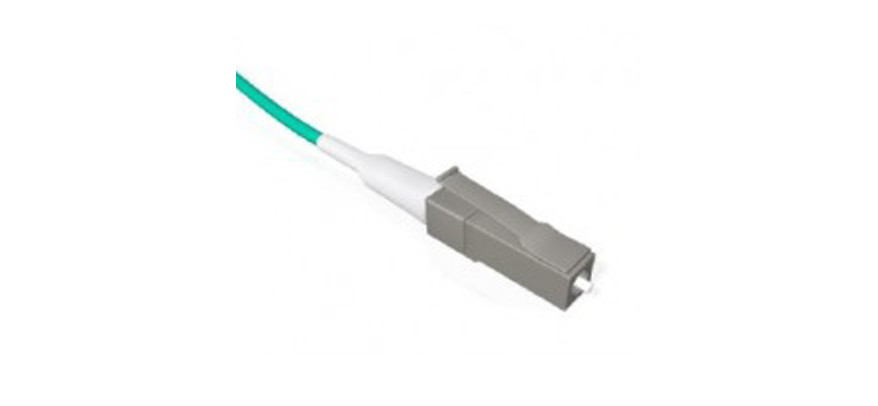

UC-Connect LC OM3 pigtail for use with UC-Connect fibre system.
Useable in very compact areas
- Applications: FTTx, telecommunications, data communications, CATV, test and measurement
- Ultra polish (UPC) as standard and Angle polish (APC) by request
- Un-tuned patchcords as standard and tuned patchcords by request
- Qualified to Telcordia GR326 and IEC 61300 standards and RoHS compliant materials
- Supplied with full traceability and test certification at each assembly
- Robust and flexible
- Supplied with ceramic ferrules
- Operating temperature: min. - 40 °C; max. 85 °C
- Available length is 1m
- Standard cable diameter is 900μm with easy strip buffer. Ruggedized pigtails can also be supplied in 1.6mm, 2mm and 3mm.
- The fibres and the buffer as coloured to ensure ease of identification when stripped
Draka OM3 Pigtails
