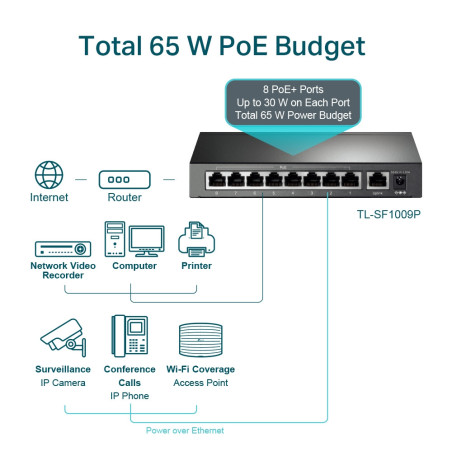

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 65W PoE power budget for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

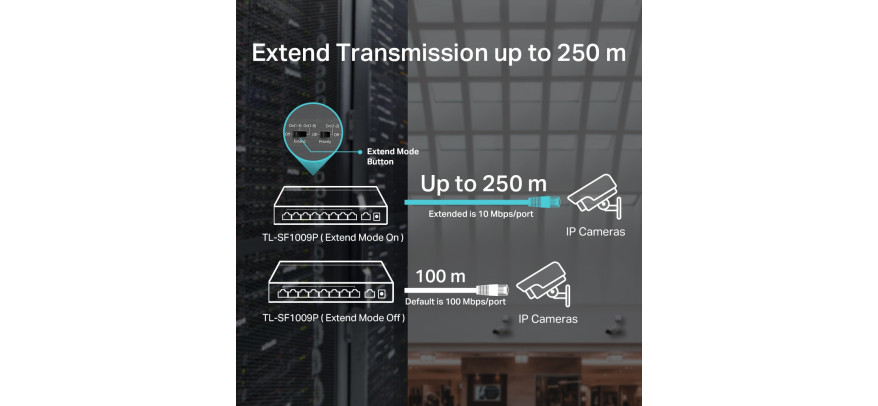

With extend mode, the PoE transmission distance reaches up to 250m - perfect for IP Camera deployment in large areas. (The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.)
Priority Mode and Isolation Mode make surveillance smoother and safer.
With one click, Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
- 9x 10/100 Mbps RJ45 ports
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250m data and power transmitting range under Extend Mode

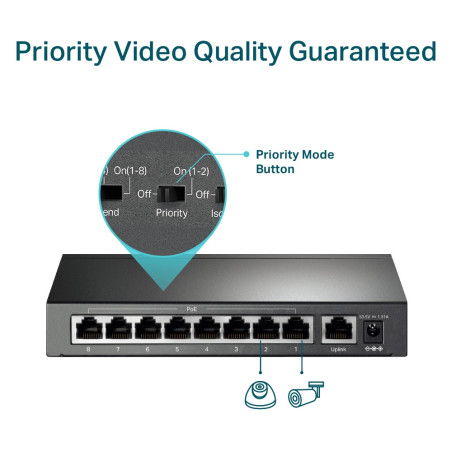

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance

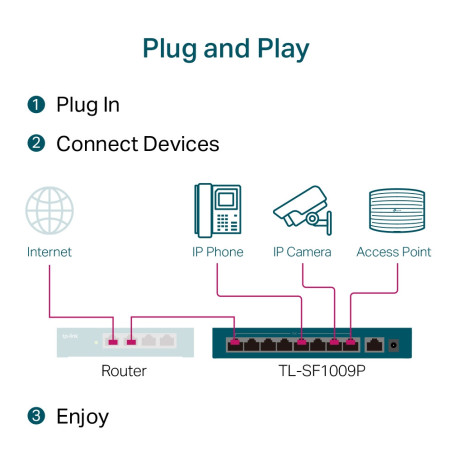

- Plug and play with no configuration required
